圆梦省一了。
依稀还记得一年前第一次参加线下赛的无力感。感谢队友不离不弃，这次终于无憾了。
嘿嘿，这次和杭师的 gets 师傅，r3kapig 的 yuro 师傅，还有其他师傅们见面了，还是很开心。
这次有幸 AK 掉 RE，想着很久没写 WP 了那就小写一下吧。
# Reverse1
RC4 加密
把 beforemain,aftermain 逻辑复制下来，最后把减号改成加就行了。
unsigned char cipher[32] = { | |
0x4E, 0x47, 0x38, 0x47, 0x62, 0x0A, 0x79, 0x6A, 0x03, 0x66, 0xC0, 0x69, 0x8D, 0x1C, 0x84, 0x0F, | |
0x54, 0x4A, 0x3B, 0x08, 0xE3, 0x30, 0x4F, 0xB9, 0x6C, 0xAB, 0x36, 0x24, 0x52, 0x81, 0xCF,0 | |
}; | |
char key1[]="keykey"; | |
char key[100]="ban_debug!"; | |
char s[256]; | |
#include <stdlib.h> | |
#include <stdint.h> | |
#include <stdio.h> | |
#include <string.h> | |
typedef char __int8; | |
typedef int64_t __int64; | |
void init(char *a1, char *a2,int a3) | |
{ | |
char v4; // [rsp+23h] [rbp-41Dh] | |
int i; // [rsp+24h] [rbp-41Ch] | |
int v6; // [rsp+28h] [rbp-418h] | |
int j; // [rsp+2Ch] [rbp-414h] | |
int v8[258]; // [rsp+30h] [rbp-410h] BYREF | |
memset(v8, 0, 0x400uLL); | |
for ( i = 0; i <= 255; ++i ) | |
{ | |
a1[i] = i; | |
v8[i] = (unsigned char)a2[i % a3]; | |
} | |
v6 = 0; | |
for ( j = 0; j <= 255; ++j ) | |
{ | |
v6 = (v8[j] + v6 + (unsigned char)a1[j]) % 256; | |
v4 = a1[j]; | |
a1[j] = a1[v6]; | |
a1[v6] = v4; | |
} | |
return ; | |
} | |
void crypt1(char *a1, char *a2, int a3) | |
{ | |
int result; // rax | |
char v4; // [rsp+27h] [rbp-11h] | |
int v5; // [rsp+28h] [rbp-10h] | |
int v6; // [rsp+2Ch] [rbp-Ch] | |
int i; // [rsp+30h] [rbp-8h] | |
v5 = 0; | |
v6 = 0; | |
for ( i = 0; ; ++i ) | |
{ | |
result = i; | |
if ( a3 <= i ) | |
break; | |
v5 = (v5 + 1) % 256; | |
v6 = (v6 + (unsigned char)a1[v5]) % 256; | |
v4 = a1[v5]; | |
a1[v5] = a1[v6]; | |
a1[v6] = v4; | |
a2[i] ^= a1[(unsigned char)(a1[v5] + a1[v6])]; | |
} | |
} | |
void crypt2(char *a1, char *a2, int a3) | |
{ | |
__int64 result; // rax | |
char v4; // [rsp+27h] [rbp-11h] | |
int v5; // [rsp+28h] [rbp-10h] | |
int v6; // [rsp+2Ch] [rbp-Ch] | |
int i; // [rsp+30h] [rbp-8h] | |
v5 = 0; | |
v6 = 0; | |
for ( i = 0; ; ++i ) | |
{ | |
result = i; | |
if ( a3 <= i ) | |
break; | |
v5 = (v5 + 1) % 256; | |
v6 = (v6 + (unsigned char)a1[v5]) % 256; | |
v4 = a1[v5]; | |
a1[v5] = a1[v6]; | |
a1[v6] = v4; | |
a2[i] += a1[(unsigned char)(a1[v5] + a1[v6])]; | |
} | |
} | |
int main(){ | |
init(s,key1,strlen(key1)); | |
crypt1(s,key,strlen(key)); | |
memset(s, 0, sizeof(s)); | |
init(s,key,strlen(key)); | |
crypt2(s,cipher,32); | |
puts(cipher); | |
} |
# Reverse2
魔改 UPX，用 010 对照标志改回来就行（去年初赛决赛也是，出题人真喜欢 UPX）

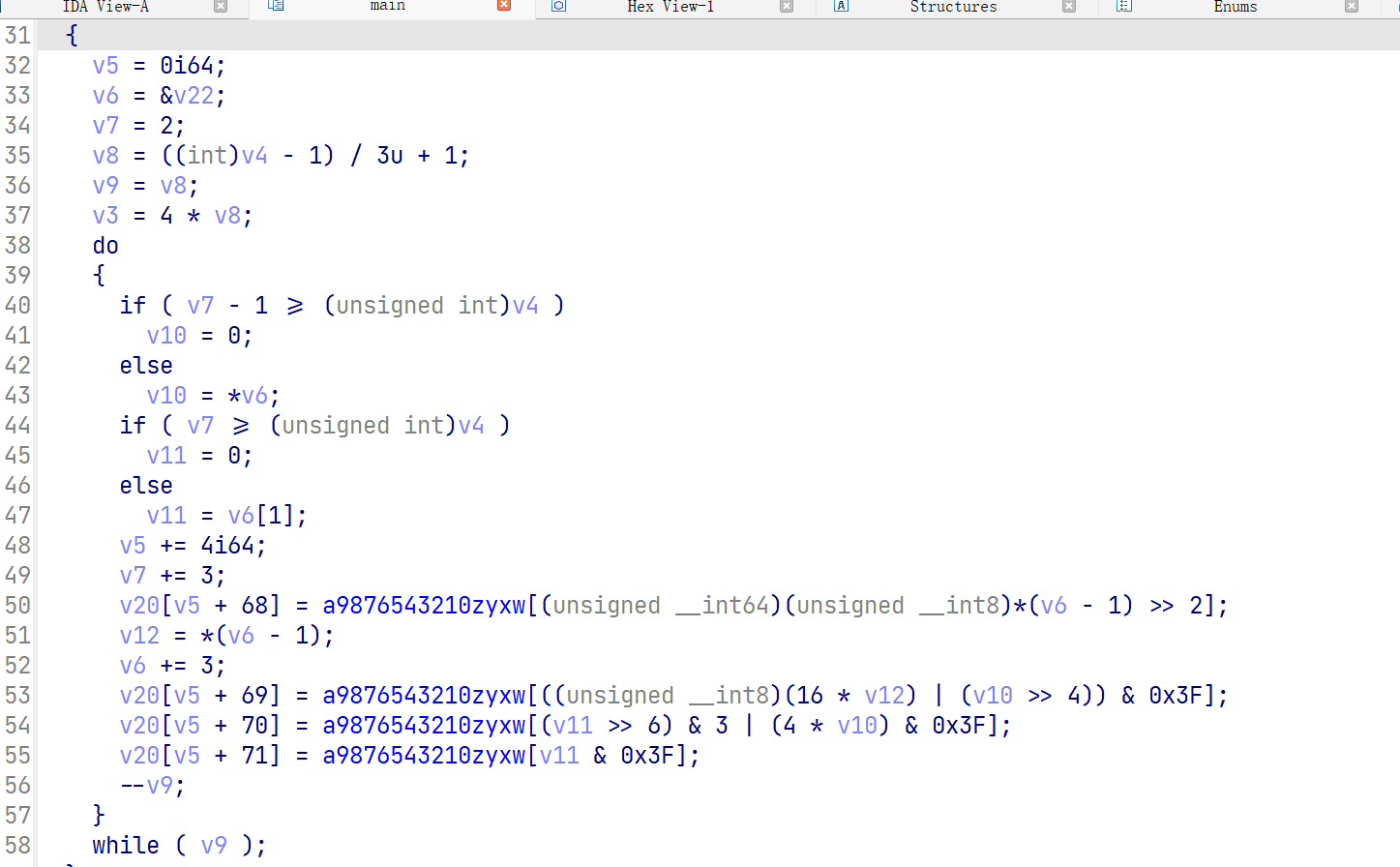

base64 加密
换表
/+9876543210zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA
密文
u76svKu5hJvLzpvHnJvGx5nPz53Nz8uaxsfGxseanJnHy83ImoL=
直接解密就行了
# Reverse3
程序有花指令和反调试。去掉花指令后发现并没有什么逻辑。

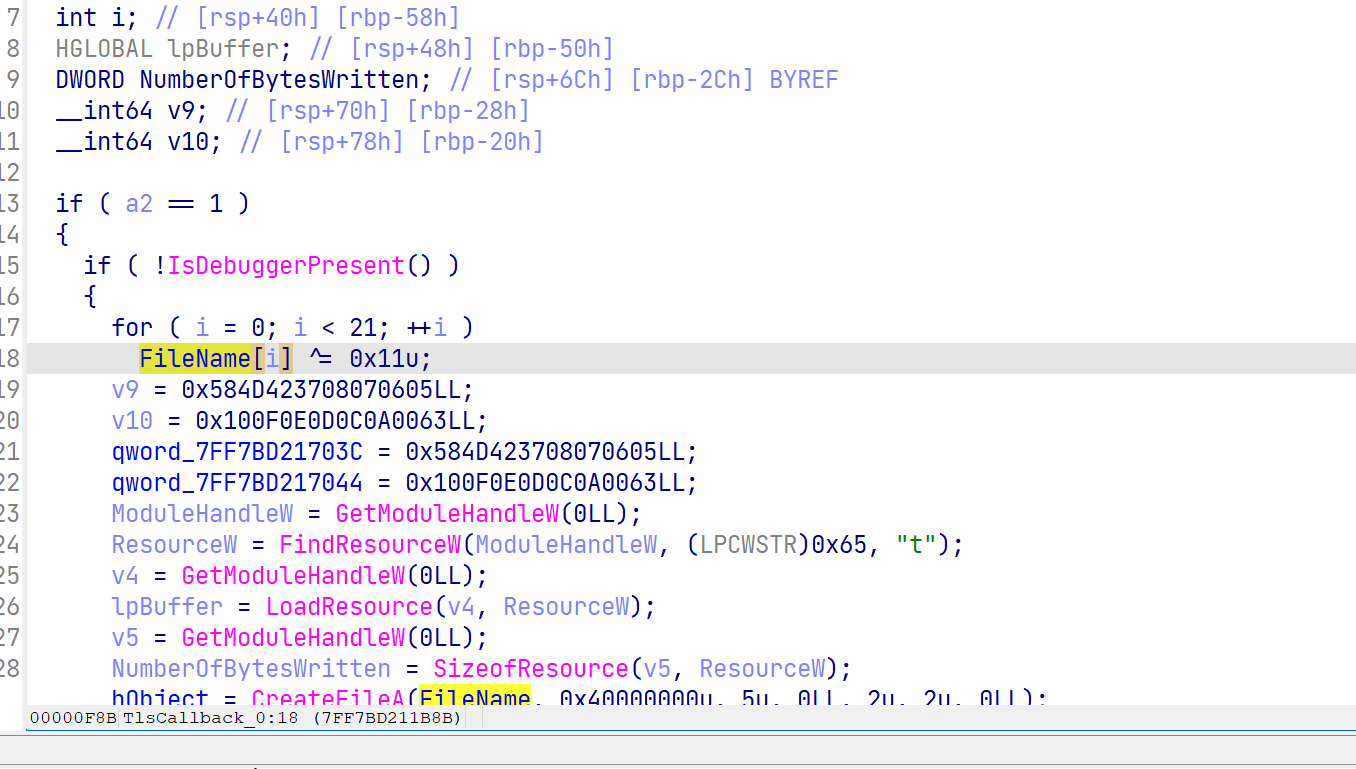

在 TlsCallback_0 里发现字符串 FileName 异或 0x11。
异或回来找到了 1.exe 这个程序，加密应该主要位于这里，原本的 exe 只是一个加载器。
观察 1.exe 逻辑，是一个 AES加密 ，但是有换盒。
把密钥和密文取出，反出逆 s 盒，进行 AES解密 ，发现无法解密。
比对内存中的数据和脚本加密数据发现是一样的， AES解密 不可能存在问题。
猜测是加载器修改了 key 或者其他数据。 frida 的注入不会被反调试检测，用 frida 去 hook 得到 key 的数据，发现 key 被改变。换用改变的 key 仍然不可解密。
接下来 hook 了 sbox ， sbox 也发生了改变，替换改变后的 sbox 还是不可解密。
再 hook 密文，发现密文没有改变，那改变的可能是输入的 flag 数据。hook 后确实是输入的 flag 被加密了。

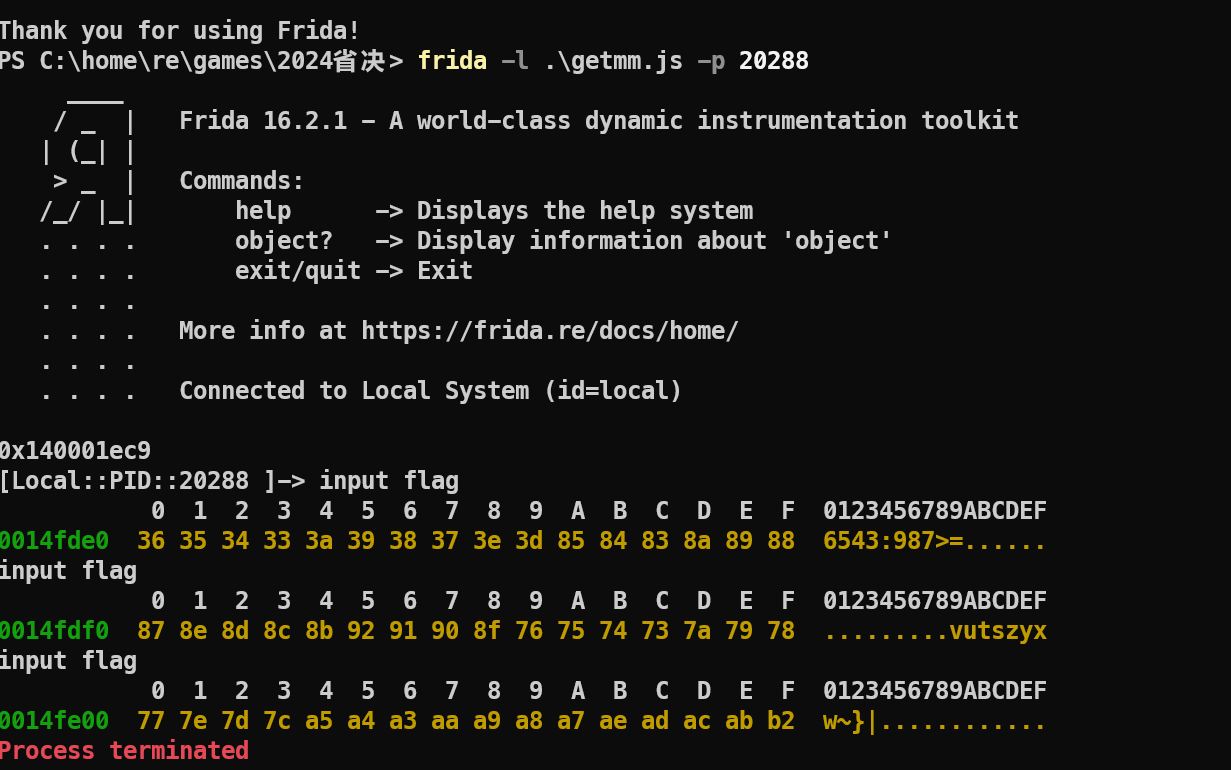

多次 hook 发现输入的 flag 每个字节都会有一定偏移。我们把可打印字符串表作为 flag 输入，获得字符变化的对应关系。
0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ!\"#$%&'()*+,-./:;<=>?@[\\]^_ 输入后
按照对应关系输出 AES解密 的数据即可得到 flag。
frida hook 脚本
var inter=setInterval(function () { | |
var sgame = Process.findModuleByName("1.exe"); | |
if(sgame==null){ | |
console.log("无"); | |
return; | |
} | |
clearInterval(inter); | |
console.log(""+sgame.base.add(0x001EC9 )); | |
Interceptor.attach(sgame.base.add(0x001EC9 ), { | |
onEnter: function (args) { | |
var rax=this.context.rax; | |
console.log("" +rax); | |
// 检查密文有没有被修改 | |
console.log(hexdump(ptr(rax),{length: 50,ansi:true})); | |
} | |
}) | |
Interceptor.attach(sgame.base.add(0x001E2C ), { | |
onEnter: function (args) { | |
console.log("input flag"); | |
// 检查输入 flag 的时候有没有被修改 | |
console.log(hexdump(ptr(this.context.rdx),{length: 16,ansi:true})); | |
} | |
}) | |
Interceptor.attach(sgame.base.add(0x1380), { | |
onEnter: function (args) { | |
var rdx=this.context.rdx; | |
// 检查 key ,sbox , 进入函数的 flag 有没有被修改 | |
console.log("key" ); | |
console.log(hexdump(ptr(rdx),{length: 16,ansi:true})); | |
console.log("flag:" ); | |
console.log(hexdump(ptr(this.context.rcx),{length: 16,ansi:true})); | |
console.log("sbox:" ); | |
console.log(hexdump(ptr(sgame.base.add(0x5160)),{length: 256,ansi:true})); | |
} | |
}) | |
} , 1) |
逆盒脚本
new_s_box = [ | |
0x63,0x7c,0x77,0x7b,0xf2,0x6b,0x6f,0xc5,0x30,0x01,0x67,0x2b,0xfe,0xd7,0xab,0x76,0xca,0x82,0xc9,0x7d,0xfa,0x59,0x47,0xf0,0xad,0xd4,0xa2,0xaf,0x9c,0xa4,0x72,0xc0,0xb7,0xfd,0x93,0x26,0x36,0x3f,0xf7,0xcc,0x34,0xa5,0xe5,0xf1,0x71,0xd8,0x31,0x15,0x04,0xc7,0x23,0xc3,0x18,0x96,0x05,0x9a,0x07,0x12,0x80,0xe2,0xeb,0x27,0xb2,0x75,0x09,0x83,0x2c,0x1a,0x1b,0x6e,0x5a,0xa0,0x52,0x3b,0xd6,0xb3,0x29,0xe3,0x2f,0x84,0x53,0xd1,0x00,0xed,0x20,0xfc,0xb1,0x5b,0x6a,0xcb,0xbe,0x39,0x4a,0x4c,0x58,0xcf,0xd0,0xef,0xaa,0xfb,0x43,0x4d,0x33,0x85,0x45,0xf9,0x02,0x7f,0x50,0x3c,0x9f,0xa8,0x51,0xa3,0x40,0x8f,0x92,0x9d,0x38,0xf5,0xbc,0xb6,0xda,0x21,0x10,0xff,0xf3,0xd2,0xcd,0x0c,0x13,0xec,0x5f,0x97,0x44,0x17,0xc4,0xa7,0x7e,0x3d,0x64,0x5d,0x19,0x73,0x60,0x81,0x4f,0xdc,0x22,0x2a,0x90,0x88,0x46,0xee,0xb8,0x14,0xde,0x5e,0x0b,0xdb,0xe0,0x32,0x3a,0x0a,0x49,0x06,0x24,0x5c,0xc2,0xd3,0xac,0x62,0x91,0x95,0xe4,0x79,0xe7,0xc8,0x37,0x6d,0x8d,0xd5,0x4e,0xa9,0x6c,0x56,0xf4,0xea,0x65,0x7a,0xae,0x08,0xba,0x78,0x25,0x2e,0x1c,0xa6,0xb4,0xc6,0xe8,0xdd,0x74,0x1f,0x4b,0xbd,0x8b,0x8a,0x70,0x3e,0xb5,0x66,0x48,0x03,0xf6,0x0e,0x61,0x35,0x57,0xb9,0x86,0xc1,0x1d,0x9e,0xe1,0xf8,0x98,0x11,0x69,0xd9,0x8e,0x94,0x9b,0x1e,0x87,0xe9,0xce,0x55,0x28,0xdf,0x8c,0xa1,0x89,0x0d,0xbf,0xe6,0x42,0x68,0x41,0x99,0x2d,0x0f,0xb0,0x54,0xbb,0x16 | |
] | |
import string | |
new_contrary_sbox = [0]*256 | |
print(len(new_s_box)) | |
for i in range(256): | |
line = (new_s_box[i]&0xf0)>>4 | |
rol = new_s_box[i]&0xf | |
new_contrary_sbox[(line*16)+rol] = i | |
print(len(new_contrary_sbox)) | |
print(new_contrary_sbox) | |
print(string.printable) |
aes 解密脚本，每次解密一段
#define _CRT_SECURE_NO_WARNINGS | |
#include<stdio.h> | |
void AddRoundKey(unsigned char *plaintext, unsigned char * CipherKey)/* 轮密钥加 */ | |
{ | |
for (int j = 0; j < 16; j++) plaintext[j] = plaintext[j] ^ CipherKey[j]; | |
} | |
void SubBytes(unsigned char *plaintext, unsigned char *plaintextencrypt, int count)/*S 盒置换 */ | |
{ | |
unsigned int row, column; | |
unsigned char Sbox[16][16] = { | |
/* 0 1 2 3 4 5 6 7 8 9 a b c d e f */ | |
0x63,0x7c,0x77,0x7b,0xf2,0x6b,0x6f,0xc5,0x30,0x01,0x67,0x2b,0xfe,0xd7,0xab,0x76,0xca,0x82,0xc9,0x7d,0xfa,0x59,0x47,0xf0,0xad,0xd4,0xa2,0xaf,0x9c,0xa4,0x72,0xc0,0xb7,0xfd,0x93,0x26,0x36,0x3f,0xf7,0xcc,0x34,0xa5,0xe5,0xf1,0x71,0xd8,0x31,0x15,0x04,0xc7,0x23,0xc3,0x18,0x96,0x05,0x9a,0x07,0x12,0x80,0xe2,0xeb,0x27,0xb2,0x75,0x09,0x83,0x2c,0x1a,0x1b,0x6e,0x5a,0xa0,0x52,0x3b,0xd6,0xb3,0x29,0xe3,0x2f,0x84,0x53,0xd1,0x00,0xed,0x20,0xfc,0xb1,0x5b,0x6a,0xcb,0xbe,0x39,0x4a,0x4c,0x58,0xcf,0xd0,0xef,0xaa,0xfb,0x43,0x4d,0x33,0x85,0x45,0xf9,0x02,0x7f,0x50,0x3c,0x9f,0xa8,0x51,0xa3,0x40,0x8f,0x92,0x9d,0x38,0xf5,0xbc,0xb6,0xda,0x21,0x10,0xff,0xf3,0xd2,0xcd,0x0c,0x13,0xec,0x5f,0x97,0x44,0x17,0xc4,0xa7,0x7e,0x3d,0x64,0x5d,0x19,0x73,0x60,0x81,0x4f,0xdc,0x22,0x2a,0x90,0x88,0x46,0xee,0xb8,0x14,0xde,0x5e,0x0b,0xdb,0xe0,0x32,0x3a,0x0a,0x49,0x06,0x24,0x5c,0xc2,0xd3,0xac,0x62,0x91,0x95,0xe4,0x79,0xe7,0xc8,0x37,0x6d,0x8d,0xd5,0x4e,0xa9,0x6c,0x56,0xf4,0xea,0x65,0x7a,0xae,0x08,0xba,0x78,0x25,0x2e,0x1c,0xa6,0xb4,0xc6,0xe8,0xdd,0x74,0x1f,0x4b,0xbd,0x8b,0x8a,0x70,0x3e,0xb5,0x66,0x48,0x03,0xf6,0x0e,0x61,0x35,0x57,0xb9,0x86,0xc1,0x1d,0x9e,0xe1,0xf8,0x98,0x11,0x69,0xd9,0x8e,0x94,0x9b,0x1e,0x87,0xe9,0xce,0x55,0x28,0xdf,0x8c,0xa1,0x89,0x0d,0xbf,0xe6,0x42,0x68,0x41,0x99,0x2d,0x0f,0xb0,0x54,0xbb,0x16 | |
};// 填充 Sbox 矩阵 | |
for (int i = 0; i < count; i++) | |
{ | |
row = (plaintext[i] & 0xF0) >> 4; | |
column = plaintext[i] & 0x0F; | |
plaintextencrypt[i] = Sbox[row][column]; | |
} | |
} | |
void SubBytesRe(unsigned char *plaintext, unsigned char *plaintextencrypt, int count)/*S 盒逆置换 */ | |
{ | |
unsigned int row, column; | |
unsigned char Sbox[16][16] = { | |
82, 9, 106, 213, 48, 54, 165, 56, 191, 64, 163, 158, 129, 243, 215, 251, 124, 227, 57, 130, 155, 47, 255, 135, 52, 142, 67, 68, 196, 222, 233, 203, 84, 123, 148, 50, 166, 194, 35, 61, 238, 76, 149, 11, 66, 250, 195, 78, 8, 46, 161, 102, 40, 217, 36, 178, 118, 91, 162, 73, 109, 139, 209, 37, 114, 248, 246, 100, 134, 104, 152, 22, 212, 164, 92, 204, 93, 101, 182, 146, 108, 112, 72, 80, 253, 237, 185, 218, 94, 21, 70, 87, 167, 141, 157, 132, 144, 216, 171, 0, 140, 188, 211, 10, 247, 228, 88, 5, 184, 179, 69, 6, 208, 44, 30, 143, 202, 63, 15, 2, 193, 175, 189, 3, 1, 19, 138, 107, 58, 145, 17, 65, 79, 103, 220, 234, 151, 242, 207, 206, 240, 180, 230, 115, 150, 172, 116, 34, 231, 173, 53, 133, 226, 249, 55, 232, 28, 117, 223, 110, 71, 241, 26, 113, 29, 41, 197, 137, 111, 183, 98, 14, 170, 24, 190, 27, 252, 86, 62, 75, 198, 210, 121, 32, 154, 219, 192, 254, 120, 205, 90, 244, 31, 221, 168, 51, 136, 7, 199, 49, 177, 18, 16, 89, 39, 128, 236, 95, 96, 81, 127, 169, 25, 181, 74, 13, 45, 229, 122, 159, 147, 201, 156, 239, 160, 224, 59, 77, 174, 42, 245, 176, 200, 235, 187, 60, 131, 83, 153, 97, 23, 43, 4, 126, 186, 119, 214, 38, 225, 105, 20, 99, 85, 33, 12, 125 }; // 填充 Sbox 矩阵 | |
for (int i = 0; i < count; i++) | |
{ | |
row = (plaintext[i] & 0xF0) >> 4; | |
column = plaintext[i] & 0x0F; | |
plaintextencrypt[i] = Sbox[row][column]; | |
} | |
} | |
void ShiftRowsRe(unsigned char *plaintextencrypt)/* 行移位的逆 */ | |
{ | |
unsigned char temp = 0; | |
for (int i = 0; i < 4; i++)// 第 i 行 | |
{ | |
for (int j = 0; j < 4 - i; j++)// 第 j 次左移 | |
{ | |
temp = plaintextencrypt[i]; | |
for (int k = 0; k < 4; k++) | |
plaintextencrypt[i + 4 * k] = plaintextencrypt[i + 4 * (k + 1)]; | |
plaintextencrypt[i + 12] = temp; | |
} | |
} | |
} | |
void ShiftRows(unsigned char *plaintextencrypt)/* 行移位 */ | |
{ | |
unsigned char temp = 0; | |
for (int i = 0; i < 4; i++)// 第 i 行 | |
{ | |
for (int j = 0; j < i; j++)// 第 j 次左移 | |
{ | |
temp = plaintextencrypt[i]; | |
for (int k = 0; k < 4; k++) | |
plaintextencrypt[i + 4 * k] = plaintextencrypt[i + 4 * (k + 1)]; | |
plaintextencrypt[i + 12] = temp; | |
} | |
} | |
} | |
unsigned char Mult2(unsigned char num)/* 列混淆 */ | |
{ | |
unsigned char temp = num << 1; | |
if ((num >> 7) & 0x01) | |
temp = temp ^ 27; | |
return temp; | |
} | |
unsigned char Mult3(unsigned char num) | |
{ | |
return Mult2(num) ^ num; | |
} | |
void MixColumns(unsigned char *plaintextencrypt, unsigned char *plaintextcrypt) | |
{ | |
int i; | |
for (i = 0; i < 4; i++) | |
plaintextcrypt[4 * i] = Mult2(plaintextencrypt[4 * i]) ^ Mult3(plaintextencrypt[4 * i + 1]) ^ plaintextencrypt[4 * i + 2] ^ plaintextencrypt[4 * i + 3]; | |
for (i = 0; i < 4; i++) | |
plaintextcrypt[4 * i + 1] = plaintextencrypt[4 * i] ^ Mult2(plaintextencrypt[4 * i + 1]) ^ Mult3(plaintextencrypt[4 * i + 2]) ^ plaintextencrypt[4 * i + 3]; | |
for (i = 0; i < 4; i++) | |
plaintextcrypt[4 * i + 2] = plaintextencrypt[4 * i] ^ plaintextencrypt[4 * i + 1] ^ Mult2(plaintextencrypt[4 * i + 2]) ^ Mult3(plaintextencrypt[4 * i + 3]); | |
for (i = 0; i < 4; i++) | |
plaintextcrypt[4 * i + 3] = Mult3(plaintextencrypt[4 * i]) ^ plaintextencrypt[4 * i + 1] ^ plaintextencrypt[4 * i + 2] ^ Mult2(plaintextencrypt[4 * i + 3]); | |
} | |
/* 逆列混淆 */ | |
#define xtime(x) ((x<<1) ^ (((x>>7) & 1) * 0x1b)) | |
#define Multiply(x,y) (((y & 1) * x) ^ ((y>>1 & 1) * xtime(x)) ^ ((y>>2 & 1) * xtime(xtime(x))) ^ ((y>>3 & 1) * xtime(xtime(xtime(x)))) ^ ((y>>4 & 1) * xtime(xtime(xtime(xtime(x)))))) | |
void MixColumnsRe(unsigned char *state) | |
{ | |
unsigned char a, b, c, d; | |
for (int i = 0; i < 4; i++) | |
{ | |
a = state[4*i]; | |
b = state[4*i+1]; | |
c = state[4*i+2]; | |
d = state[4*i+3]; | |
state[4 * i] = Multiply(a, 0x0e) ^ Multiply(b, 0x0b) ^ Multiply(c, 0x0d) ^ Multiply(d, 0x09); | |
state[4 * i + 1] = Multiply(a, 0x09) ^ Multiply(b, 0x0e) ^ Multiply(c, 0x0b) ^ Multiply(d, 0x0d); | |
state[4 * i + 2] = Multiply(a, 0x0d) ^ Multiply(b, 0x09) ^ Multiply(c, 0x0e) ^ Multiply(d, 0x0b); | |
state[4 * i + 3] = Multiply(a, 0x0b) ^ Multiply(b, 0x0d) ^ Multiply(c, 0x09) ^ Multiply(d, 0x0e); | |
} | |
} | |
int CharToWord(unsigned char *character, int first)/* 字节转字 */ | |
{ | |
return (((int)character[first] & 0x000000ff) << 24) | (((int)character[first + 1] & 0x000000ff) << 16) | (((int)character[first + 2] & 0x000000ff) << 8) | ((int)character[first + 3] & 0x000000ff); | |
} | |
void WordToChar(unsigned int word, unsigned char *character)/* 字转字节 */ | |
{ | |
for (int i = 0; i < 4; character[i++] = (word >> (8 * (3 - i))) & 0xFF); | |
} | |
void ExtendCipherKey(unsigned int *CipherKey_word, int round)/* 密钥扩展 */ | |
{ | |
unsigned char CipherKeyChar[4] = { 0 },CipherKeyCharEncrypt[4] = { 0 }; | |
unsigned int Rcon[10] = { 0x01000000,0x02000000,0x04000000,0x08000000,0x10000000,0x20000000,0x40000000,0x80000000,0x1B000000,0x36000000 }; // 轮常量 | |
for (int i = 4; i < 8; i++) | |
{ | |
if (!(i % 4)) | |
{ | |
WordToChar((CipherKey_word[i - 1] >> 24) | (CipherKey_word[i - 1] << 8), CipherKeyChar); | |
SubBytes(CipherKeyChar, CipherKeyCharEncrypt, 4); | |
CipherKey_word[i] = CipherKey_word[i - 4] ^ CharToWord(CipherKeyCharEncrypt, 0) ^ Rcon[round]; | |
} | |
else | |
CipherKey_word[i] = CipherKey_word[i - 4] ^ CipherKey_word[i - 1]; | |
} | |
} | |
#include <stdlib.h> | |
void genString(int size){ | |
char *text = (char *)malloc(size * sizeof(char)); | |
for (size_t i = 0; i < size; i++) | |
{ | |
text[i]=35+i; | |
} | |
puts(text); | |
} | |
char table[]="0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ!\"#$%&'()*+,-./:;<=>?@[\\]^_`{|}~ "; | |
char res[]={0x36,0x35,0x34,0x33,0x3a,0x39,0x38,0x37,0x3e,0x3d,0x85,0x84,0x83,0x8a,0x89,0x88,0x87,0x8e,0x8d,0x8c,0x8b,0x92,0x91,0x90,0x8f,0x76,0x75,0x74,0x73,0x7a,0x79,0x78,0x77,0x7e,0x7d,0x7c,0xa5,0xa4,0xa3,0xaa,0xa9,0xa8,0xa7,0xae,0xad,0xac,0xab,0xb2, | |
0xb1,0xb0,0xaf,0x96,0x95,0x94,0x93,0x9a,0x99,0x98,0x97,0x9e,0x9d,0x9c,0x45,0x44,0x43,0x4a,0x49,0x48,0x47,0x4e,0x4d,0x4c,0x4b,0x52,0x51,0x50,0x4f,0x3c,0x3b,0x42,0x41,0x40,0x3f,0xa6,0x9b,0xa2,0xa1,0xa0,0x9f,0x86,0x7b,0x82,0x81,0x80,0x66,0x66 | |
}; | |
char getcc(char in){ | |
for (size_t i = 0; i < 96; i++) | |
{ | |
if (in==res[i]) | |
{ | |
return table[i]; | |
} | |
} | |
} | |
void main() | |
{ | |
printf("**************AES加解密***************\n"); | |
int i = 0, k; | |
unsigned mm[]={0x71,0x55,0x7f,0xa8,0xfa,0x0e,0xa3,0x19,0xa0,0x5c,0xf9,0x0e,0x9b,0x0b,0x5e,0xfc,0xb5,0xa8,0x49,0xfd,0x90,0x99,0x74,0xc7,0x77,0x02,0x6a,0xf5,0x9a,0x6a,0xba,0x7f,0xfb,0xe7,0x68,0xda,0x54,0xee,0xe8,0xbb,0x78,0x01,0xe7,0xbb,0xa2,0x95,0x95,0xfa}; | |
unsigned char PlainText[48] ="aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa" | |
, | |
CipherKey[16] = { 0x05,0x06,0x07,0x08,0x37,0x42,0x4d,0x58,0x63,0x00,0x0a,0x0c,0x0d,0x0e,0x0f,0x10 }, | |
CipherKey1[16] = { 0x05,0x06,0x07,0x08,0x37,0x42,0x4d,0x58,0x63,0x00,0x0a,0x0c,0x0d,0x0e,0x0f,0x10}, | |
PlainText1[48] = { | |
0x71, 0x55, 0x7F, 0xA8, 0xFA, 0x0E, 0xA3, 0x19, 0xA0, 0x5C, 0xF9, 0x0E, 0x9B, 0x0B, 0x5E, 0xFC, | |
0xB5, 0xA8, 0x49, 0xFD, 0x90, 0x99, 0x74, 0xC7, 0x77, 0x02, 0x6A, 0xF5, 0x9A, 0x6A, 0xBA, 0x7F, | |
0xFB, 0xE7, 0x68, 0xDA, 0x54, 0xEE, 0xE8, 0xBB, 0x78, 0x01, 0xE7, 0xBB, 0xA2, 0x95, 0x95, 0xFA | |
}, | |
PlainText2[48] = { 0x71, 0x55, 0x7F, 0xA8, 0xFA, 0x0E, 0xA3, 0x19, 0xA0, 0x5C, 0xF9, 0x0E, 0x9B, 0x0B, 0x5E, 0xFC, | |
0xB5, 0xA8, 0x49, 0xFD, 0x90, 0x99, 0x74, 0xC7, 0x77, 0x02, 0x6A, 0xF5, 0x9A, 0x6A, 0xBA, 0x7F, | |
0xFB, 0xE7, 0x68, 0xDA, 0x54, 0xEE, 0xE8, 0xBB, 0x78, 0x01, 0xE7, 0xBB, 0xA2, 0x95, 0x95, 0xFA | |
}; | |
unsigned int CipherKey_word[44] = { 0 }; | |
for (i = 0; i < 4; CipherKey_word[i++] = CharToWord(CipherKey, 4 * i)); | |
printf("密钥："); | |
for (k = 0; k < 16; k++) printf("%2X ", CipherKey[k]); | |
printf("\n明文："); | |
for (k = 0; k < 16; k++) printf("%02X ", PlainText[k]); | |
printf("\n**************开始加密****************"); | |
AddRoundKey(PlainText, CipherKey); | |
for (i = 0; i < 9; i++) | |
{ | |
SubBytes(PlainText, PlainText1, 16);/*S 盒置换 */ | |
ShiftRows(PlainText1); /* 行移位 */ | |
MixColumns(PlainText1, PlainText2); /* 列混淆 */ | |
ExtendCipherKey(CipherKey_word + 4 * i, i);/* 子密钥生成 */ | |
for (k = 0; k < 4; k++) WordToChar(CipherKey_word[k + 4 * (i + 1)], CipherKey + 4 * k); | |
for (k = 0; k < 16; k++) printf("%02X ", CipherKey[k]); | |
AddRoundKey(PlainText2, CipherKey);/* 轮密钥加 */ | |
for (k = 0; k < 16; k++) PlainText[k] = PlainText2[k]; | |
} | |
SubBytes(PlainText, PlainText1, 16); | |
ShiftRows(PlainText1); | |
ExtendCipherKey(CipherKey_word + 4 * i, i); | |
for (k = 0; k < 4;WordToChar(CipherKey_word[k + 4 * (i + 1)], CipherKey + 4 * k), k++); | |
AddRoundKey(PlainText1, CipherKey); | |
printf("\n\n最终AES加密后的密文为："); | |
for (i = 0; i < 16; i++) printf("%02X ", PlainText1[i]); | |
for (size_t i = 0; i < 16; i++) | |
{ | |
PlainText1[i]=mm[i]; // 解密第二段第三段偏移 16，32 即可 | |
} | |
printf("\n\n**************开始解密***************"); | |
AddRoundKey(PlainText1, CipherKey); | |
for (i = 0; i < 9; i++) | |
{ | |
SubBytesRe(PlainText1, PlainText, 16);/*S 盒置换 */ | |
for (k = 0; k < 4; WordToChar(CipherKey_word[k + 40 - 4 * (i + 1)], CipherKey + 4 * k),k++);/* 子密钥生成 */ | |
ShiftRowsRe(PlainText);/* 行移位逆 */ | |
AddRoundKey(PlainText, CipherKey);/* 轮密钥加 */ | |
MixColumnsRe(PlainText);/* 列混淆逆运算 */ | |
for (k = 0; k < 16;PlainText1[k] = PlainText[k],k++); | |
} | |
printf("\n最后一次循环："); | |
ShiftRowsRe(PlainText);/* 行移位逆 */ | |
SubBytesRe(PlainText, PlainText1, 16);/*S 盒置换 */ | |
AddRoundKey(PlainText1, CipherKey1); | |
printf("\n最终AES解密后的明文为："); | |
for (i = 0; i < 16; i++) printf("%c",getcc( PlainText1[i])); | |
printf("\n"); | |
} |
